Build a Better Wheelbarrow

August 20, 2016 in Articles, Uncategorized

Ironcrete Joyride 1968

Ironcrete Joyride 1968

The wheelbarrow is indispensable for moving soil, loose materials and tools around. Easy to use, manoeuvre and depending upon the ability of the driver and the grip of one’s boots a wheelbarrow can traverse the trickiest of terrain. But is there a better solution?

Over the decades manufacturers have tried to redesign the humble wheelbarrow, even create something more cutting-edge as in the Kirk-Dyson Ballbarrow of the mid 1970’s (image below). Mechanisation always plays a part too, why not add an engine, or even add a barrow body as an add-on item to an existing machine to give it another use? Everything, including wheelbarrows slowly evolve and change from a pedestrian operated item to specific engine powered machines as in the images of many different machines posted below.

Kirk-Dyson Ball Barrow

Kirk-Dyson BallBarrow



Historically wheelbarrows go back many centuries but the one that gardeners would associate as being ‘old’ is a wooden affair of hefty construction that’s a load in itself. Take the 1909 wheelbarrow (image below) from Coopers of London, made of the best elm boards, ash legs and wheel and ‘well ironed up’ this was a piece of construction once loaded up to test the ability of a young Edwardian under-gardener.

Wheelbarrow from Coopers of Old Kent Road, London. 1909

At the other end of the scale are the 1960’s lightweight yet sturdy wheelbarrows from Ironcrete. These were a large range of wheelbarrows to suit the busy gardener and available with either a galvanized or a red polythene body. Ironcrete wheelbarrows had a lightweight tubular frame and either a solid narrow wheel or a pneumatic tyre. This is something our Edwardian gardener would have dearly loved to have had no doubt.

The load capacity of the Ironcrete ‘Whopper’ (what a brilliant name!) could be increased with an extension top taking it’s capacity from 4 cu ft and doubling it to 8 cu ft for the adventurous gardener.

Ironcrete Wheelbarrows from the 1960's.

Ironcrete Wheelbarrows from the 1960’s. The galvanised ‘Whopper’ could have additional side extensions doubling it’s capacity (and unstable-ness no doubt).


Although deviating from the true shape of a wheelbarrow, Ironcrete also created the oddly named ‘Joyride’. A pull-along and push-around affair with two small wheels and an optional tool tray. It’s advertising states that it is ‘Most suitable for ladies and those who find an ordinary wheelbarrow too heavy to manoeuver‘.

Ironcrete Joyride with optional tool tray.

Ironcrete Joyride with optional tool tray.

In the mid 1960’s British Anzani made something similar to the Joyride and called it the ‘FoldAKart‘ which could be used as a barrow or attached to the back of the British Anzani Lawnrider mower.  Obviously it’s master stroke over all the other wheelbarrows and carts was that it could be folded quickly for easy storage. It also had the British Anzani name which made it stand out as a strong and robust make.

British Anzani FoldAKArt advert and photo - £9 9s in 1964 for the FoldAKart

British Anzani FoldAKart advert and photo – £9 9s in 1964 for the FoldAKart


As mentioned, wheelbarrow type bodies became added to other tools to increase their usability, a great idea! Amongst the attachments available for the Jalo push hoe such as ploughs and cultivators was indeed a barrow body. This appears to be a clever attachment and not one that would be instantly thought of.

Jalo Barrow Attachemnet (Ivan Clark)

Jalo Barrow Attachment (Ivan Clark)

Flymo the well known lawnmower manufacturer who also produced a multitude of other garden machines had a barrow attachment for their DM garden tiller, as the advertising says it’s ‘The motorised wheelbarrow that also digs your garden‘, although to be fair I think there’s a fair bit of operator presence required to achieve the task.

Wheelbarrow attachment for the Flymo DM tiller cultivator

Wheelbarrow attachment for the Flymo DM tiller cultivator

Merry Tiller had amongst it’s fantastic range of extras a load carrier. Not a true wheelbarrow but a motorised helping-hand to get items from A to B with as little effort as possible.

Merry Tiller Load Carrier

Merry Tiller Load Carrier


Similarly Mayfield also had a great range of attachments. See an image of their brochure.  They also included a front barrow attachment for moving large loads around the plot.

Mayfield Barrow Attachment

Mayfield Barrow Attachment

The advantages of having a barrow to move items around was not lost of Barford either. Making  ‘A Tipping Truck every Gardener Needs’  to go with the Barford Atom it was ‘a most useful conveyance for garden refuse and produce

BArford Atom Tipping Truck and Advert

Barford Atom Tipping Truck and Advert


Another two manufacturers were Winget, the makers of tractors and also dumpers made the Winget Power Barrow (image left) and Allen made a load carrier (image right) for their Allen Scythe although it does appears a little precarious depending on the load.

Winget Power Barrow and Allen Scythe Load Carrier

Winget Power Barrow and Allen Scythe Load Carrier


Ride on mower manufacturers were not going to miss a trick either and Snapper made a front load carrier for their 1960s/70s Snapper Comet Ride on mower.

Snapper Comet Load Carrier

Snapper Comet Load Carrier

AutoBarrow 1974 Vintage Advert

AutoBarrow 1974 Vintage Advert


There are some other notable manufacturers specifically making load-carrying machines. The most obvious is probably Autobarrow (image right) with a various range of items for their multi-purpose handling unit.

Many other manufacturers have produced barrow attachments or made dumpers and carts over the decades. If you know of any additions then let us know.

Also have a look at the Trucks and Carts  gallery to see what else was available.





by alan

Suffolk Mower Factory – Then and Now

July 20, 2016 in Machinery, Uncategorized


Suffolk Punch Advert

Suffolk Super Punch Advert

Archive videos are always fascinating. The engaging monochrome films of days gone by and the lives of the people involved in various trades are of immense importance.

I’ve found a film online and captured in black and white is the Suffolk mower factory in Stowmarket, a site which eventually produced a huge number of engines and parts each year and exported mowers all around the world. Fast forward a few decades and in to the 21st century and the mower works now operated by Bosch are producing the next hi-tec generation of battery powered lawn mowers.

It’s an interesting film of how lawn mower technology is changing to meet the potential future demands of the grass cutting public, just like the demand for Suffolk mowers did all those years ago. Will this technology be a collectable horticultural item of the future? I bet they never though people would restore and exhibit Suffolk mowers.

This is a great video to see how the Suffolk factory operated only a few decades ago and the brilliant technological advances that are produced there now for horticultural use.

Click the link to watch the video:  https://youtu.be/p8n6HLjD0XU

You can also find more information about the Suffolk Mower Works at the National Archives.


by alan

Mini Ride on Mowers

June 28, 2016 in Machinery, Uncategorized

Mowing the lawn can sometimes seem like a bit of a chore but a ride-on-mower can add a dash of fun and a bit of one-upmanship too. What better way then for the average suburban gardener of the 1960’s 70’s and 80’s to justify getting their hands on an affordable ride-on mower than to buy one of the many mini ride-ons that were available? However diminutive the lawn there was probably a ride-on that could fit the space even if a pedestrian mower may have been a better alternative. The sole purpose of all these machines listed below was for mowing duties and at a push a little bit of pulling a small cart or pushing a snow blade about perhaps, these machines have either mid-mounted or front-mounted engines as opposed to something like the Mountfield 25 rider with a rear mounted engine.

Here is a list of the makes of mini ride-on mowers we know about in the UK:

Mowett Mustangs on Show

Mowett Mustangs on Show

One of the best known is probably the Mowett Mustang dating from the 1970’s onwards (image right). These are quite popular in the UK and there are many about. This is a machine of US origin that was sold mostly via mail order (see advert). With either 5, 7 or 8hp Briggs and Stratton engines this mower was also rebadged by Deckson and also Continental  with their own decals and livery. This is certainly a small mower with a fixed-in-place 25″ single bladed mower deck, the mowing height could be altered by putting extra spacers on the drive shaft so the blade was closer to the grass. Mustangs have a single speed forward/reverse gearbox by Foote and have one feature missing – they have no brakes.

Following in a similar design are the Huffy mowers (image below), these are fairly common and again feature a single bladed deck of about 24″ and with a standard 5hp Briggs and Stratton engine one could be yours for £169.00 plus £3 carriage. These machines have a simple gearbox setup but thankfully these feature brakes and have height adjustable mower decks too so a massive leap forward on the Mustang.

Huffy Mower Tractor Advert

Huffy Mower Tractor Advert


Gutbrod mini ride-on-mower

Gutbrod mini ride-on-mower

All these machines follow the same design with a steel channel chassis with a mid-mounted mower deck (sometimes bolted in place) with an engine directly above to drive the blade.They are all low machines too with mostly small solid 8″ – 10″ wheels and basic steering linkage. It’s no surprise then that many manufacturers followed the same overall easy, cheap and basic design when creating their mini machines. Even manufacturers such as Gutbrod (image right) produced a small ride-on.

The pressed light steel small ride-on-mower market must have been fairly lucrative as Dennis the manufacturers of quality cylinder mowers produced their own 1971 mower called the RotoRider at £140.00 (Image left below). The very scarce Dennis machine has origins to another rare mower called the Pacemaker (Image right below).

Dennis Roto-Rider (Left) and Pacemaker (Right)

Dennis RotoRider (Left) and Pacemaker (Right)

As machines get slightly larger (and potentially more expensive) they start to differ from the basic Huffy and the Mustangs, they start to get pneumatic tyres and pivoting front axles and a little bit more comfort and usability too.

There are some machines of Australian origin. This includes the Bartrop/Greenfield mowers which made their way over to the UK (Bartrop (GM) Ltd, Swindon) (Images below). Although this is a slightly more sophisticated machine with the pneumatic tyres, pivoting front axle and a few more levers to aid the user, it still has a 5 or 8hp Briggs and Stratton engine and a 25″ mower deck as per basic machines.


Bartrop/Greenfield Ride-on-mowers

Bartrop/Greenfield Ride-on-mowers


In the UK Landmaster had their own small ride-on, this is getting into the area of being a larger machine, but is still primarily a mowing machine. It again has a pivoting front axle and pneumatic rear tyres whereas Mustang, Huffy, Gutbrod, Dennis and Pacemaker do not. Note that it has the same solid front tyres though.

Landmaster Ride-on-mower

Landmaster Ride-on-mower.


There may be other makes of basic ride-on-mowers like the Mustangs that we have missed from the above list, do you know of any?


by alan

Norlett’s changing logo

May 29, 2016 in Uncategorized

Norlett 8hp Tractor

Norlett 8hp Tractor

I’m sure that most machinery enthusiasts are familiar with Norlett the well known brand of machinery sold in the UK. Perhaps mostly associated with the gold painted, re-badged Wheel Horse garden tractors of the 1970’s, the Norlett name is also connected to a range of tillers, lawnmowers, snowblowers and potentially other machines which are yet to surface. Do you have any other Norlett badged machinery in the shed?

Norlett was a busy company being associated with various importers for a range of petrol and electric powered garden machines. They either had a very good marketing division, or the logo changed as the company moved premises (there’s two or more different addresses for them) or they altered the logo for a new machine or new business deal (Flymo etc) or there was more than one part to Norlett is unknown. Let us know if you can enlighten us any further!

However at least someone was kept very busy in a back room developing a Norlett logo which appears in many different forms over a few short years – more than any other manufacturer I have come across. This isn’t a difinitive guide more of an observation really on a well known name that we all associate with one company and as for the date order perhaps someone may have an answer! It’s surprising how many manufacturers have altered or tweaked their logos through the decades and we, the consumers, never noticed.

So out of curiosity here are the Norlett logos on file displayed all in one place.

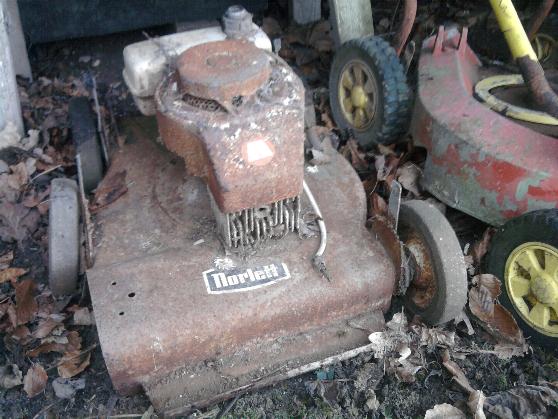

There does seem to be quite a few old Norlett badged lawnmowers lurking about, working, rusty or otherwise and the logo seems to have a blade symbol above the name which is pretty self-explanatory for a lawnmower logo.

Norlett Lawnmower Logo

Norlett Lawnmower Logo


Moving on in production, tillers and other machines sported a similar logo but without the blade symbol. Some of these logos appeared with white text on a blue or black or transparent background. Some having black text on a white background too.

Norlett Tiller Logo

Norlett Tiller Logo with blue background


Norlett Logo with White text on a black background

Norlett Logo with white text on a black background


However, Norlett’s logo for the professional range of commercial lawnmowers featured the image without the blade symbol. Have a better look at their full professional advert. The triangular Professional Range logo also appears on the machines too so wasn’t just for advert purposes.

Norlett Professional Range Advert

Norlett Professional range advert

Somewhere along the line Norlett decided to have a re-think of the logo, opting for a more modern simple font with a now capital letter N yet still keeping the two letter T’s joined together as in the early logos. These logos are mostly printed on a clear background with white text.

Norlett's modern logo

Norlett’s modern logo


There’s a slight deviation when the logo-designer treated the logo to a curved effect for the petrol powered Beaver Powaspade.

Norlett Powaspade logo

Norlett Powaspade curved logo


And again with the Electric Beaver Powaspade logo.

Norlett Electric Beaver Powaspade logo

Norlett Electric Beaver Powaspade logo


Some of the Norlett tractors (re-badged Wheel Horses) had the logo in all capital letters. White text on black, red or gold to suit the individual tractor.

Norlett tractor logo

Norlett tractor logo

The tillers also had a more modern logo in the end with all capital letters.

Norlett tiller logo

Norlett tiller logo

Let us know if you can add further to this or can correct anything.




by alan

Interesting Gallery Images

May 2, 2016 in Uncategorized

Walkie Stalkie Weeding Tool

Walkie Stalkie Weeding Tool


Whilst sorting through the thousands of pictures in the gallery I’ve found some interesting images.

Sometimes images are the normal everyday adverts that would be expected in a gardening magazine, others though are more ingenious in their advertising or in the name chosen or the item itself is questionable and would probably fall foul of the Health & Safety boundaries of today. Take the Killer Kane weeding tool, a name to frighten any dandelion into submission, although the name at the bottom of the advert is a little more friendly calling it The Walkie-Stalkie Lawn-Weed Killer. Apparently it is ‘beautifully made’ from plastic so it’s hinting at being a modern tool, a price of 22/6 for the kane and 4/6 for refills and patent applied for means they probably thought they had a winner on their hands, but has anybody got one?

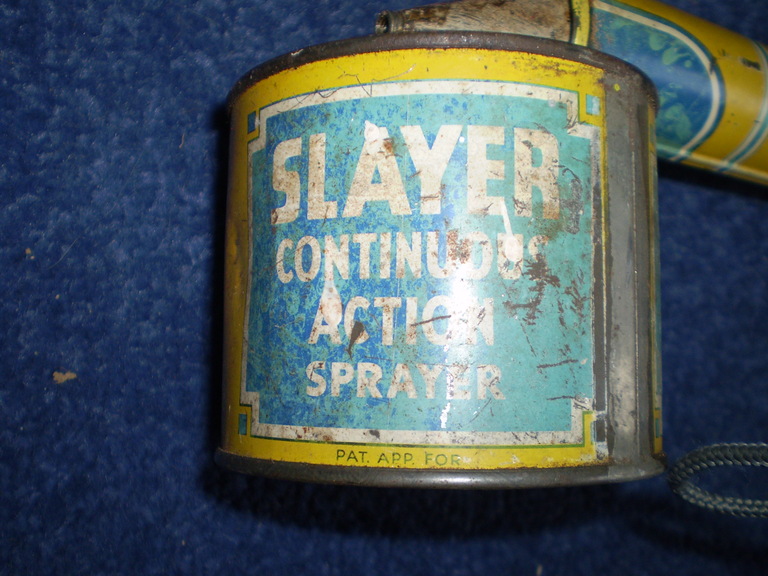

Still in the pest control area is the Slayer Sprayer or Slayer Continuous Action Sprayer for it’s full name. Again it’s patent applied for. I can however see this one being a more widely accepted tool for the gardener.

Slayer Sprayer

Slayer Sprayer


Technology and the next must-have gadget is something entrepreneurs and advertisers are keen to exploit. Let’s introduce the Remploy Mow-Master – a mower tied to a length of wire that circles a mechanical moving device as it ratchets it’s way down a straight length of lawn. A perfect solution for a rectangular lawn but I do wonder what happens when it gets to the end? Or hits a bump and scoots off into the dahlias? Or what happens when the grass-box is full? Actually I think it’d take more time to set up the device than to mow the lawn normally. However, full marks and a bottle of home brew for inginuity and for one of the first steps towards the robot lawn mower. Somewhere though there is an image of a remote controlled mower in the 1960s….

Remploy Mow-Master

Remploy Mow-Master



Deparkmental Stores Vintage Advert. Parker & Sons

Deparkmental Stores Vintage Advert. Parker & Sons

Arsenical powder and Arsenate of lead were on the comprehensive list of items provided by T.Parker and Sons of Surrey. Their advert is titled Deparkmental Stores with a simple drawing of a yokel doorman I guess.

Parkers Items ranged from big to little and included President tractors, Ransomes mowers, rollers, trailers, Allen Scythes. Smaller items included grass seed and fertilisers – they certainly stocked a full range of products!

I’ve found that it’s not uncommon for a manufacturer or supplier to offer a range of products that overlap their current offerings but mostly they extend their range with additional related items. Ransomes, best known for grass care equipment, advertised a range of golf accessories titled ‘The final touch of pride on a fine course‘.

It makes sense that Ransomes would provide golf related items such as flags, greens markers and signs but I never knew until I saw the advert!

I know there are other adverts such as the Slasher Hedge Trimmer whose name already explains all. There are no doubt many others, or machines we have seen advertised that have never appeared in the tinwork, if you have seen any other interesting adverts then let us know!

Ransomes Golf Accessories Vintage Advert
