ATCO 14 inch cyclinder mower

Home › Forums › The Main Forum Area › General talk and discussion › ATCO 14 inch cyclinder mower

Viewing 15 posts - 16 through 30 (of 38 total)
1 2 3
  • Author
    Posts
  • October 29, 2013 at 8:01 pm #2154
    vhgmcbuddy
    Member

    Hi John the engine is a villiers mk7 or mk7/1, the only difference is the carb and exhaust is on the other side, can’t remember which at the moment sory, ill have to dig my books out when I get chance.

    October 29, 2013 at 8:13 pm #2156
    vhgmcbuddy
    Member

    Wow this engine is surely becoming the biggest mystery on this new forum. thanks for imput gareth and nice to here from you.

    October 29, 2013 at 8:34 pm #2159
    vhgmcbuddy
    Member

    Just looked it up on villiersparts its a mk 7.

    October 29, 2013 at 8:40 pm #2160
    vhgmcbuddy
    Member

    PHEW !! what a relief thanks gareth

    October 29, 2013 at 9:53 pm #2161
    wristpin
    Participant

    Villiers S10 Carb

    Attachments:
    October 30, 2013 at 4:38 am #2164
    vhgmcbuddy
    Member

    Thanks angus for this and its been quite a journey identifying the new mower

    October 30, 2013 at 6:45 pm #2183
    hillsider
    Participant

    I have searched my info and have found a couple of bits of information that may help, apologies for reproducing Angus’s drawing but it was attached to my info also.

    Attachments:
    1. Villiers-S10-Carburettor.pdf
    2. Villiers-Engine-Data.pdf
    3. Villiers-Tech-Data.pdf
    October 30, 2013 at 6:57 pm #2190
    vhgmcbuddy
    Member

    no problems ray about the second carb diagram,and many thanks for the other pdf s .it was not as straight forward as some engines to ID BUT WE GOT IT WITH GOOD STERLING EFFORTS BY ALL CONCERNED.

    October 30, 2013 at 9:49 pm #2206
    hillsider
    Participant

    That’s ok pleased to help, next mystery to solve is the plastic air intake cowl, it looks rather like a plastic pudding basin! But then we have not yet seen all of it so we await further instalments.
    Ray.

    October 31, 2013 at 6:46 pm #2228
    dorigny
    Participant

    Just out of interest, and not sure if it will upload.? A poor view of my smaller Atco…can’t remember if it is 12″ or 14″, they did both…it’s rather buried in my shed. It has a Villiers lightweight aluminium engine with an unusual rubber oil filler plug rather than a threaded one.

    Clive.

    The photo did upload 🙂

    Attachments:
    October 31, 2013 at 6:55 pm #2234
    vhgmcbuddy
    Member

    clive. I can give back some expert advise on this as I have the horizontal version on my atco rotary. its a Villiers 7 E engine. I knew I had leart something and I improve with age. thanks for showing us your project. I have had an Idea. why don’t we restore them next year ?

    October 31, 2013 at 7:03 pm #2236
    dorigny
    Participant

    Hello John,
    Yes it shares the same style of alloy cast blower housing that’s on your rotary…I would hazard a guess though that this engine is smaller.??

    ..and i fear reality will get in the way at this end and you will be on to the next project and some before I find the hours just to get into my shed. 😉

    Clive.

    October 31, 2013 at 7:11 pm #2237
    vhgmcbuddy
    Member

    well I have two projects running now but its going to take possibly until easter to wrap them up,but if my house sells before then I wont have anywhere to do my tinkering and that’s BAD NEWS !! I have heard of something call shed fever its not very pleasant.

    November 3, 2013 at 10:11 am #2403
    vhgmcbuddy
    Member

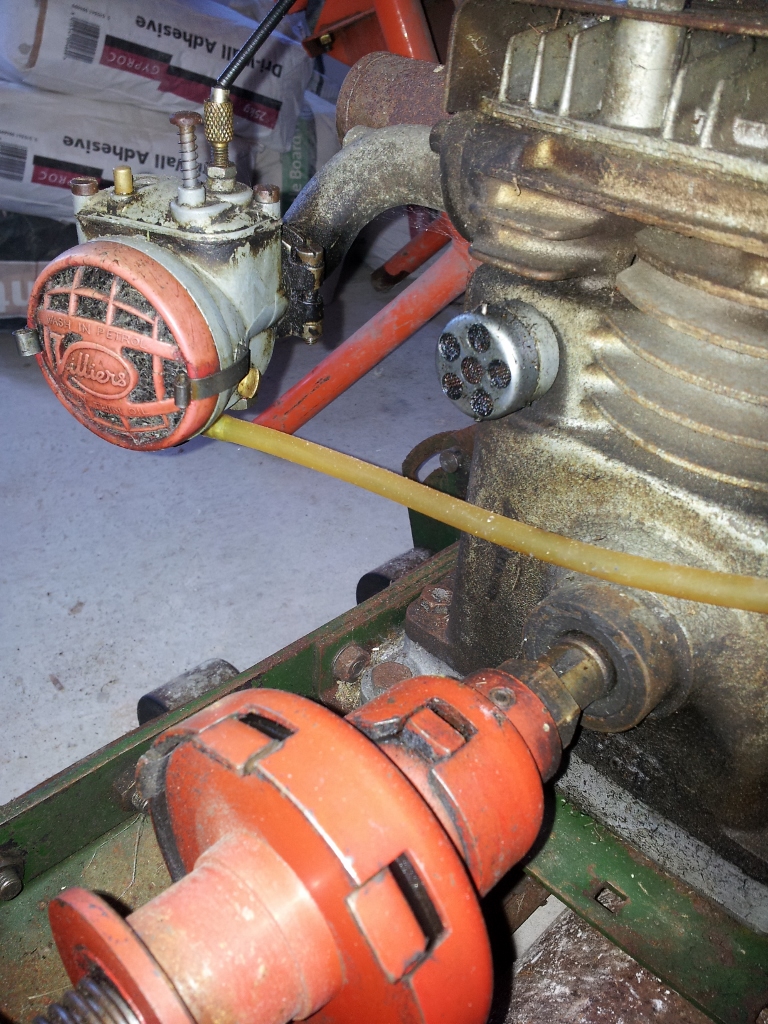

    Made time today to remove all extra bits which the first owner added for his convienience, and it does reveal what was hiding in the red plastic tub.

    Attachments:
    November 3, 2013 at 10:39 am #2414
    charlie
    Keymaster

    That is a standard Villiers air filter, still available. Why the previous owner added the red plastic tub who knows.
